Vector Quantization

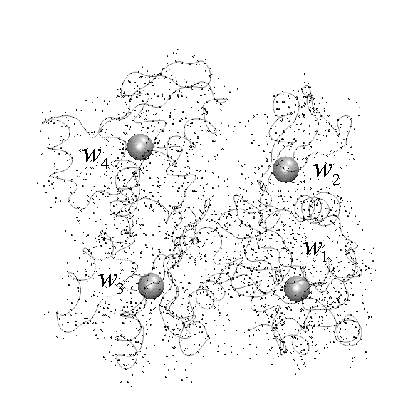

Vector quantization offers a flexible way to develop a coarse-grained representation of 3D biological data from a variety of biophysical sources. The following figure shows the structure of an actin monomer (backbone trace + atoms) encoded by four so-called codebook vectors :
Given a certain number of vectors, we would like to make sure that the vector positions are statistically reliable and reproducible for them to be useful for the registration of the encoded features (Wriggers et al, 1998). Therefore, we employ two quantization algorithms with different characteristics, the topology-representing neural network (TRN), and the Linde-Buzo-Gray (LBG, also called k -means) algorithms. TRN performs a global stochastic search using random start vectors. A number of statistically independent TRN runs is repeated and the results are clustered and averaged. TRN is useful if vector positions are determined the first time. On the other hand, LBG performs only a single run of local gradient descent search. It is useful if one wants to update existing vector positions, or if one wants to add distance constraints (see below).

It can be shown that both LBG and TRN minimize the so-called distortion error of the discrete representation. In signal processing this error measures the fidelity of the data encoding (the original use of vector quantization was in data compression). In our case the error is defined as the mean-squares deviation of the discrete set of vectors from the corresponding (encoded) 3D data. LBG finds only the nearest local minimum of the error, and is therefore unreliable for global searches. TRN with it's stochastic (Monte Carlo) approach comes close to finding the global minimum. The TRN search can be improved even more by a clustering of vector positions from a number of statistically independent runs. The clustering yields average positions of vectors and their statistical variabilities. The statistical variabilities are very small compared to the typical size of proteins.

Ideally, if one could find the global minimum of the error exactly, the vector distribution is fully determined by the input density distribution. In this situation the codebook vectors form a set of "control points" or "landmarks" that provide information about the shape and density distribution of a 3D biological object, similar to the control points that determine the shape of Bézier spline curves in computer graphics. Therefore, the TRN algorithm presents a good choice for learning the characteristics of 3D biological datasets at reduced complexity. The LBG algorithm can then be used to build upon existing vector positions.

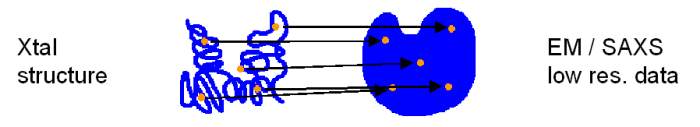

In rigid-body docking (Birmanns and Wriggers, 2007), vector quantization is used to discretize both high- and low-resolution data sets. Pairs of corresponding codebook vectors are then identified and superimposed by a least-squares fit. The codebook vector least-squares fit results in a superposition of the corresponding high- and low-resolution data sets:

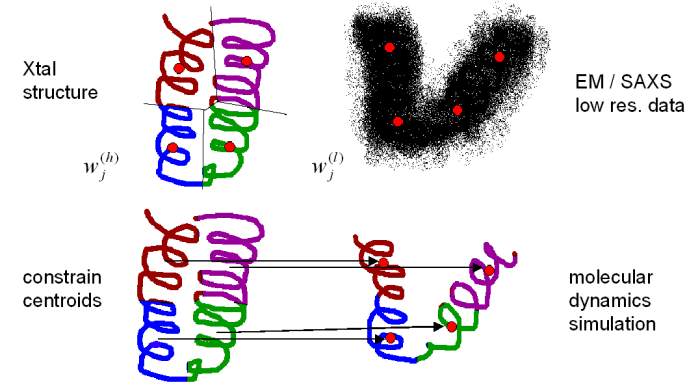

This approach is particularly useful also in situations where there are conformational changes that require flexible fitting. The codebook vectors can be used as constraints for the fitting using molecular dynamics simulation tools. The colored regions in the following diagram are the so-called Voronoi (nearest neighbor) cells whose centroids should coincide with the generating vectors:

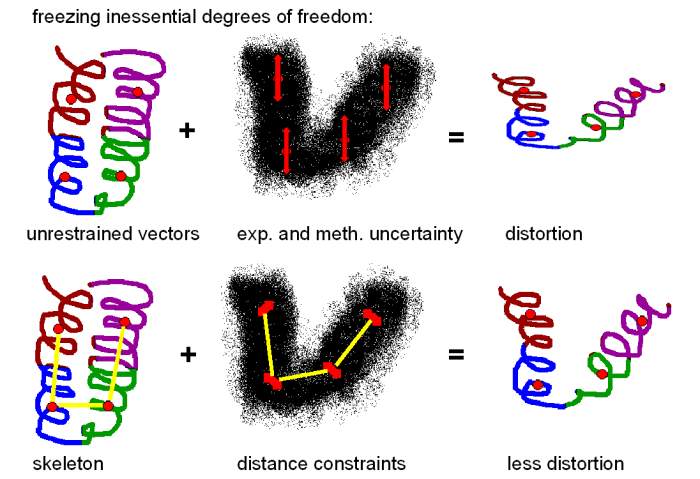

Fitting of the centroids to the low-resolution vector positions induces the desired conformational change. If one is concerned about the stereochemical quality of the fitting, it is possible to constrain the distances between the vectors to reduce the effect of noise and experimental limitations on the vector positions:

This "skeleton" based approach is related to 3D motion capture technology used in the entertainment industry and in biomechanics. The implementation of the constraints requires that the vector positions are updated incrementally. This is accomplished by using the LBG algorithm instead of TRN. To get by with only a local LBG optimization, a global search with the stochastic TRN method should be applied first in the absence of constraints. The TRN vectors (and the constraints) are then used as input parameters for the subsequent LBG refinement. The constraints are enforced with the iterative SHAKE algorithm (see Wriggers and Chacon, 2001).
